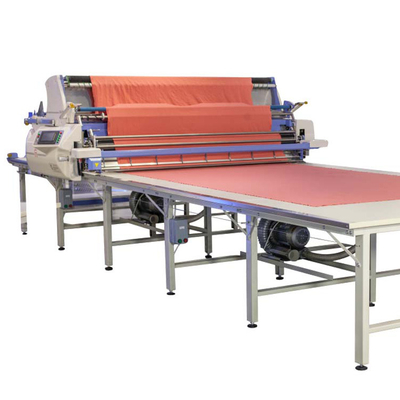

Garment Shops After-sales Service Garment Fabric Woven Fabric Knitting Spreading Machine

1 Set
MOQ
$20,000.00(1 - 1 Sets) $19,000.00(>=2 Sets)
цена
Garment Shops After-sales Service Garment Fabric Woven Fabric Knitting Spreading Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Applicable Industries: Garment Shops, Manufacturing Plant
Weight (KG): 750
Showroom Location: Egypt, Turkey, Italy, Viet Nam, Philippines, Peru, Saudi Arabia, India, Mexico, Russia, Thailand, Argentina, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Malaysia, Australia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Motor
Warranty: 1 Year
maximum fabric width: 1900 mm
table width: 2130 mm
weight of cloth in roll: 50 KG
diameter of cloth in roll: 450 mm
travel speed: 86 m/minmax.
lay height: one way: 220 mm; face to face: 150 mm
power supply: 1 P /220 V
motor power: 1.5 KW
Основная информация
Оплата и доставка Условия
Packaging Details: PLYWOOD PACK
Supply Ability: 20 Set/Sets per Month
Характер продукции
Product Description

Items  Specification
 Voltage 1P/220V
Cloth Width Maximum(mm) 1600~2800
Machine Weight(kg) 320~400
Diameter of Cloth Roll(mm) 450 max,Customized available
Lay Height(mm) One-Way:220;Face to Face:150
Models 160~280
Power  1.5kW
Table Width(mm) 1830~3030
Weight of Cloth Roll(kg) 50 max,Customized available
Travel Speed(m/min) 86 max
LxWxH Dimensions(mm) 2300x1800x950~3500x1800x950



Related Products
Company Information



Packaging & Shipping



FAQ

1.  Are you trading company or manufacturer?

We are manufacturer, our factory is located in Wuhan city, Hubei province ,China



2.  How many years does your factory work on the cutter?

We have been working on motion control system since 2004, started auto cutter development and research in 2012



3.What languages are supported?

English/Vietnamese/Romanian and Chinese in menu

If other language in need, contact your sales window for details.



4.What about the warranty?

12 months from the date of installation.



5.Should I prepare a computer?

One computer (DELL/LENOVO optional) in pack, no need to pay extra.



6. How thick your machine can cut?

Up to 9cm after compressed by vacuum.

There are 3cm,5cm,7cm,9cm models available, choose the right model according to material graphic marker nesting/yield and factory plan.



7.Will you send engineer for installation and training at overseas factory? What’s the cost?

Yes, we will send engineer(s) for the cutter installation and training. NO labor cost, but round tickets and accommodations should be organized by the customer.
